Model No:DMX11
Place of Origin:China
Delivery time: 3-4 weeks
Supply ability: 1000PCS/week
Payment way: T/T, L/C, D/P, Western Union
Description: DMX512 wireless receiver,which solve lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, This product adopt global opening 2.4G ISM frequency section without permission limited.

Product Feature:
2X8 bit LCD to display working condition and parameter
4 grade power rate output for option.
126 channels jumping frequency self-moving，self-moving to option non-interfere frequency section, ensuring
communication is reliable.
16 groups ID coding for setting，User can use 16 groups individual wireless net without any interfere each other in the same place.

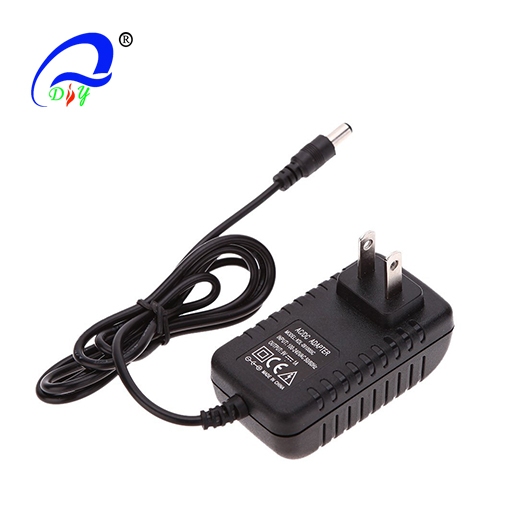

Input voltage ：9-12VDC 300MA MIN
Communication distance：400M（visible distance）
Working frequency：2.4G ISM,126 channels
Max transmitting power rate：20dBm
Receive sensitive：-94dBm
DMX single terminal：3PIN male-female socket
Dimension: 75*147*43 mm
Net weight：1kg

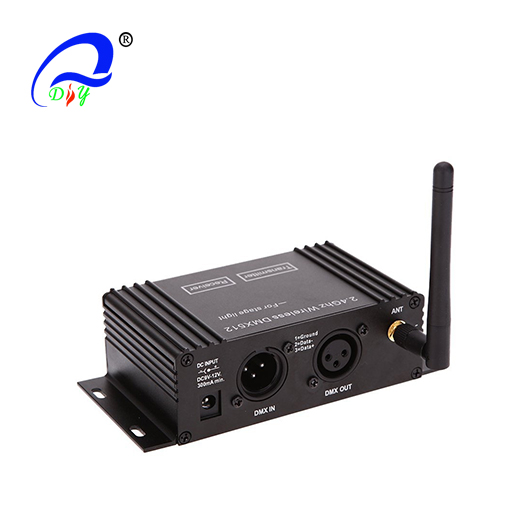

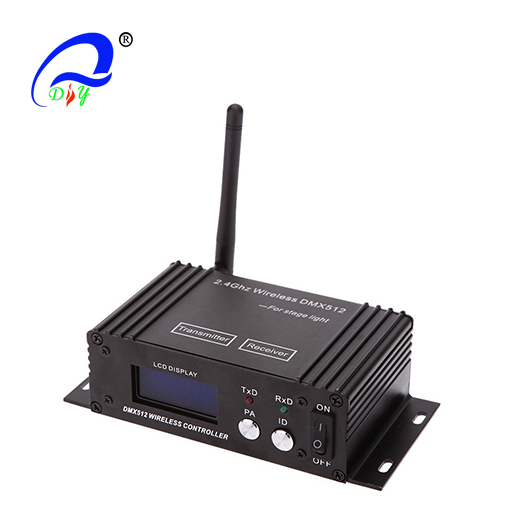

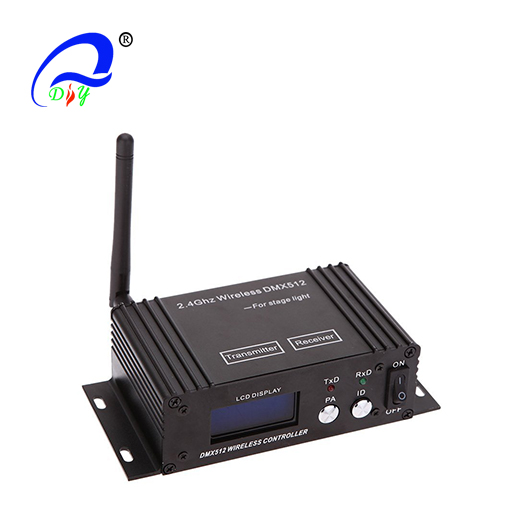

Outline:
1: LCD display window 2: Indicator light of transmitting 3: Indicator light of receiver
4: Setting knob of transmitting power rate 5: ID Option Knob 6: Power Switch
7: Power supply input jack 8: DMX Input Socket 9: DMX Output Socket  10: RF Antenna

DMX Controller  Effect Machine  Laser Light  LED Light  Pro Moving Head
