Model No.: PL14
Place of Origin:China
Certificate: CE&RoHS
MOQ: 2PCS
Package: Carton or Flight case
Description: This mini moving head wash beam light has small shape, it's easy to the installation and operation. Equipped with 7pcs high brightness 10W 4-in-1 led lamps. The scan is fast, and positioning accuracy. This machine comes with using time display and intelligent temperature control display to ensure the lamp life.

Power Supply: AC100-240V, 50-60Hz
Power Consumption: 80W

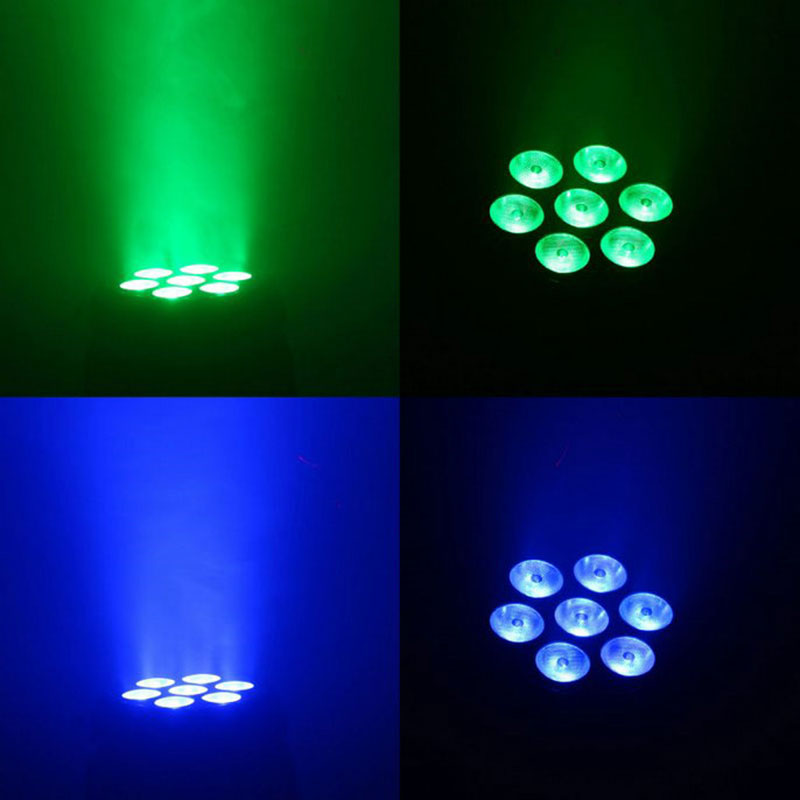

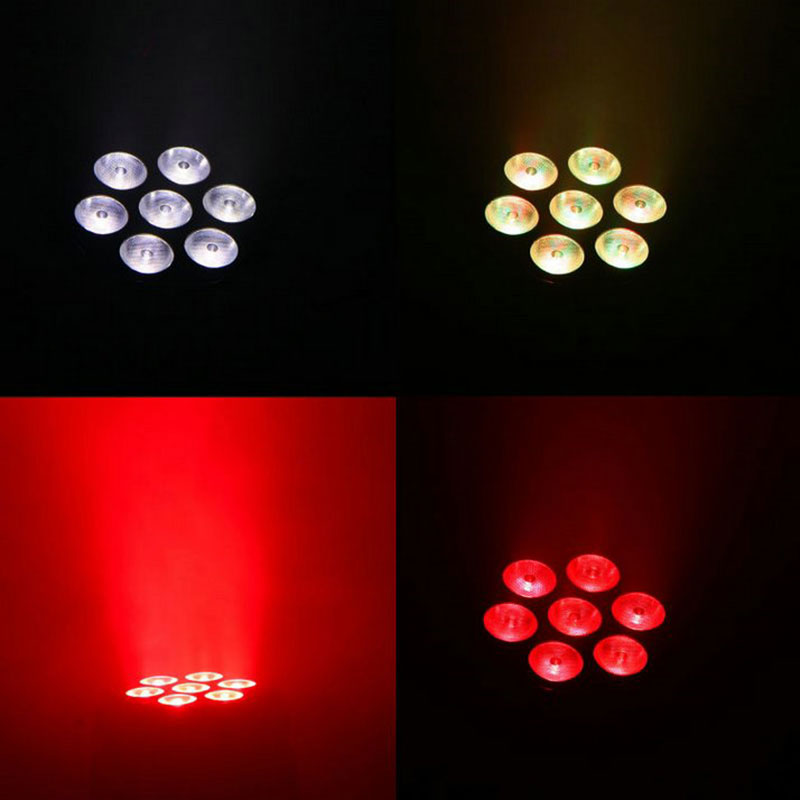

Light Source: 7pcs*10W 4in1 RGBW high brightness leds
Effect: RGB color mixing;
            Variable electronic strobe;
            Variable electronic dimmer (0~100%);
            Vector speed channel for pan/tilt, RGB color mixing and color macros;
            Built-in movement macros via master/slave or DMX;
            User-selectable basic or advanced operating modes;
            Compact and light weight;
            LED display menu with invert;
            Display auto on/off;
            Pan/tilt invert option;
            Pan cooled.
Beam Angle: 25 degree.
Strobe: effect with 1~25flashes per second and pulse effect

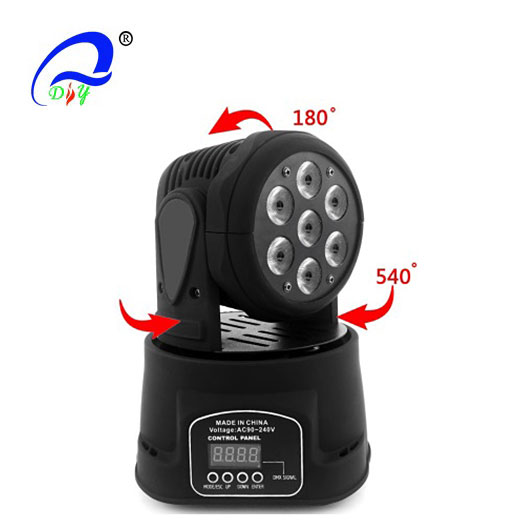

Pan: 540 degree
Tilt: 270 degree
Preset program: 8 built in programs can be called up via DMX controller
Control mode: DMX512, master-slave and sound activated controllable or auto operation
DMX Channel: 9/14 DMX Channels
Connectors: 3 -pin XLR signal connector input and output
Control Panel: LCD display
Function: Strobe, Dimmer, Color Changing,  Color Mixing
Cooling System: Low noise and efficient FAN cooling system
Carton Package:
Body size: 225*225*270mm
Carton box package size: 265*220*270mm (1pc/carton)
N.W/G.W: 3.5kg/4kg
Carton box package size: 460*280*270mm (2pc/carton)
N.W/G.W: 7kg/8kg
